Turning Tool with Wedge clamp system


Turning tools with wedge clamp system, including a bigger Wedge-shaped clamping plate and a internal pin，securing the insert from the top and a hole, are especially suitable for all kinds of heavy processing

      external-W    external-W
     External Turning Tool holder，Wedge clamp system  Top and hole clamping
（wedge clamp and pin）


   external-W

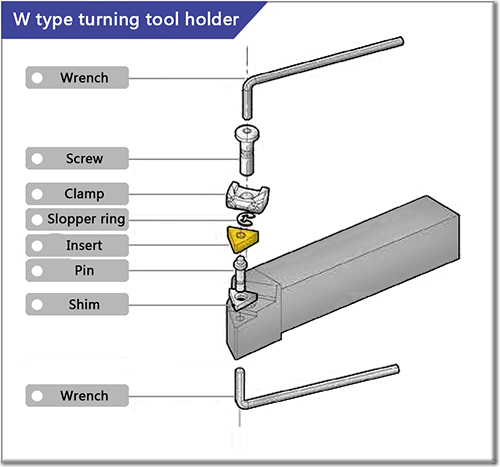

The composition of the Turning Tool with Wedge clamp system

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

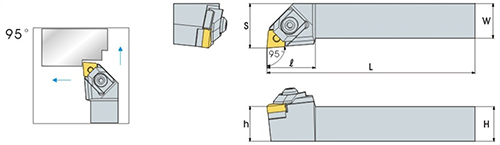

      1.   WCLNR/L   Turning tool Kr 95° for both outside-cutting and end-cutting

external-W external-W
CN type insertTurning tool with Kr 95° for both outside-cutting and end-cutting



     WCLNR/L tool holder parameters    (mm)

     Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
WCLNR/L2020K12 20 20 125 35 20 25 CN**1204** MC1204 CTM6-S YC12-1  YC12-2 CR05 CSM6 L2.0, L3.0
WCLNR/L2525M12 25 25 150 35 25 32

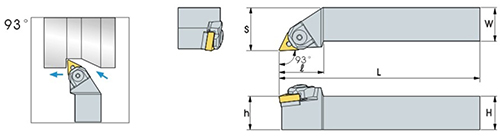

      2.   WTJNR/L   Cutting edge angle 93°

external-W TN type insert external-W

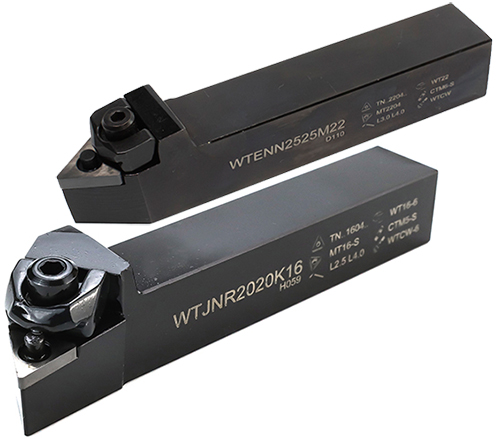

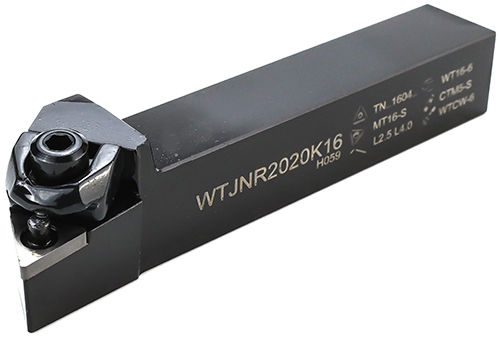

Turning tool holder WTJNR


external-W
Turning tool with Cutting edge angle 93°




     WTJNR/L tool holder parameters   (mm)

      Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
WTJNR/L1616K16 16 16 125 32 16 20 TN**1604** MT16-S CTM5-S WT16 KH540 WTCW L2.5, L4.0
WTJNR/L2020K16 20 20 125 32 20 25
WTJNR/L2525M16 25 25 150 35 25 32
WTJNR/L2525M22 25 25 150 36 25 32 TN**2204** MT2204 CTM6-S WT22 KH540 WTCW L3.0, L4.0
WTJNR/L3232P22 32 32 170 36 32 40

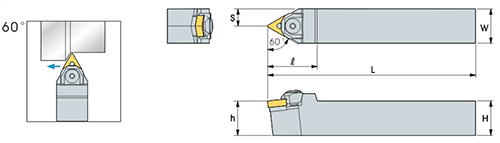

      3.   WTENN   Cutting edge angle 60°


external-W TN type insert external-W

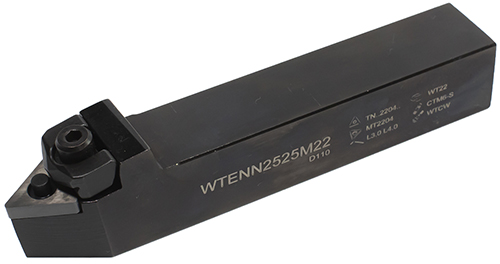

Turning tool holder WTENN


external-W
Turning tool with Cutting edge angle 60°




    WTENN tool holder parameters    (mm)

      Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
WTENN2020K16 20 20 125 34 20 10 TN**1604** MT16-S CTM5-S WT16 KH540 WTCW L2.5, L4.0
WTENN2525M16 25 25 150 35 25 12.5
WTENN2525M22 25 25 150 38 25 12.5 TN**2204** MT2204 CTM6-S WT22 KH540 WTCW L3.0, L4.0
WTENN3232P22 32 32 170 38 32 16

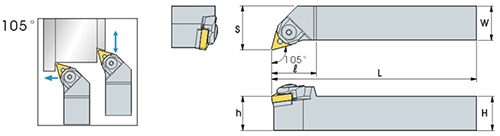

      4.   WTQNR/L   Turning tool Kr 105°



external-Wexternal-W
TN type insertTurning tool with Cutting edge angle 105°



    WTQNR/L tool holder parameters    (mm)

    Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
WTQNR/L1616K16 16 16 125 34 16 20 TN**1604** MT16-S CTM5-S WT16 KH540 WTCW L2.5, L4.0
WTQNR/L2020K16 20 20 125 36 20 25
WTQNR/L2525M16 25 25 150 36 25 32
WTQNR/L3232P16 32 32 170 36 32 40

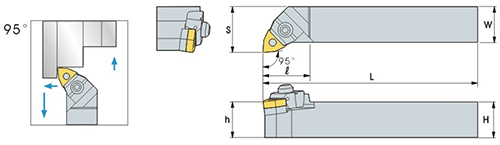

      5.  WWLNR/L  Turning tool Kr 95°

external-W      external-W
WN type insertTurning tool with Cutting edge angle 95°



     WWLNR/L tool holder parameters    (mm)

    Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
WWLNR/L1616K08 16 16 125 32 16 20 WN**0804** WW0804 CTM6-S YW08 KH540 WTCW L3.0, L4.0
WWLNR/L2020K08 20 20 125 32 20 25
WWLNR/L2525M08 25 25 150 35 25 32
WWLNR/L3232P08 32 32 170 35 32 40
