Turning Tool with Screw clamp system (FIRST)


Screw clamp turning tools which have simple structure with relief angle α7° or α5°, are suitable for various light cutting processes or fine turning ，for processing workpieces with a smaller cutting allowance and higher requirements for smoothness.

      external-S    external-S
External Turning Tool holder，Screw clamp system Screw clamp



          external-S
          The composition of the Turning Tool with Screw clamp system

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

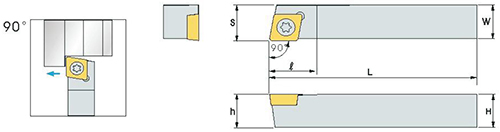

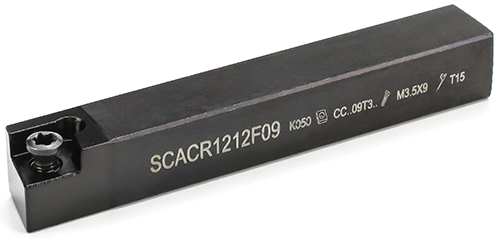

      1.   SCACR/L  Entering angle 90° and relief angle α7°



external-S CC type insert external-S

Turning tool holder SCACR


external-S
Turning tool with Kr 90° and and relief angle α7°




     SCANR/L tool holder parameters    (mm)

    Designation        size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCACR/L0808F06 8 8 80 10 8 8 CC**0602** M2.5X6 T8
SCACR/L1010H06 10 10 80 10 10 10
SCACR/L1212H06 12 12 80 13 12 12
SCACR/L1212H09 12 12 100 13 12 12 CC**09T3 M3.5X9 T15

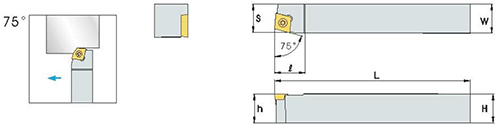

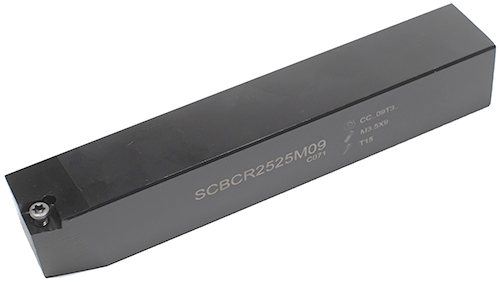

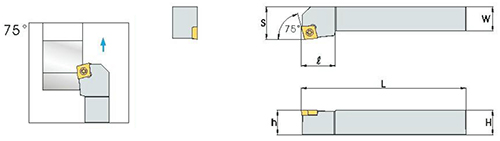

      2.   SCBCR/L   Turning tool Kr 75° and relief angle α7°

external-S CC type insert external-S

Turning tool holder SCBCR


external-S
Turning tool with Kr 75° and relief angle α7°


     SCBCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCBCR/L1212F06 12 12 80 13 12 10 CC**0602** M2.5X6 T8
SCBCR/L1616H06 16 16 100 13 16 14
SCBCR/L1212F09 12 12 80 13 12 10 CC**09T3** M3.5X9 T15
SCBCR/L1616H09 16 16 100 20 16 14
SCBCR/L2020K09 20 20 125 20 20 17
SCBCR/L2525M09 25 25 150 20 25 22
SCBCR/L2020K12 20 20 125 20 20 17 CC**1204** M5X12 T20
SCBCR/L2525M12 25 25 150 20 25 22

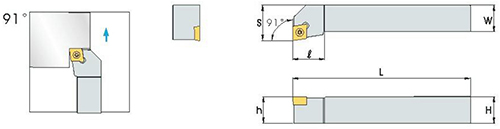

      3.    SCFCR/L   Turning tool Kr 91° and relief angle α7°


external-S   external-S
CC type insertTurning tool with Kr 91° and relief angle α7°



    SCFCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCFCR/L1010F06 10 10 80 14 10 12 CC**0602** M2.5X6 T8
SCFCR/L1212F06 12 12 80 14 12 16
SCFCR/L1616H09 16 16 100 16 16 20 CC**09T3** M3.5X9 T15
SCFCR/L2020K09 20 20 125 16 20 25
SCFCR/L2525M09 25 25 150 16 25 32

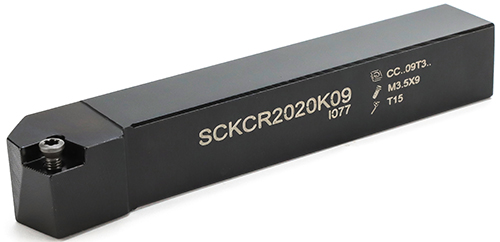

      4.   SCKCR/L   Turning tool Kr 75° and relief angle α7°

external-S CC type insert external-S

Turning tool holder SCBCR


external-S
Turning tool with Kr 75° and relief angle α7°




    SCKCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCKCR/L2020K09 20 20 125 23 20 25 CC**09T3** M3.5X9 T15
SCKCR/L2525M09 25 25 150 23 25 32
SCKCR/L2020K12 20 20 125 28 20 25 CC**1204** M5X12 T20
SCKCR/L2525M12 25 25 150 28 25 32

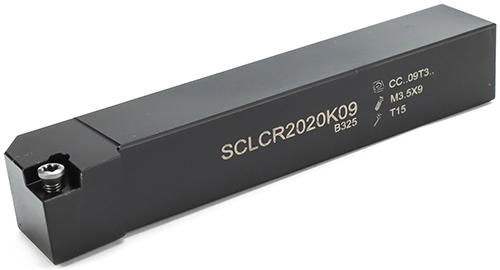

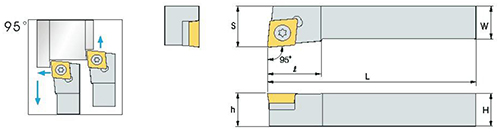

      5.  SCLCR/L tool holder Kr 95° and and relief angle α7°

external-S CC type insert external-S

Turning tool holder SCLCR


external-S
Turning tool with Kr 95° and relief angle α7°




     SCLCR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCLCR/L0808F06 8 8 80 12 8 10 CC**0602** M2.5X6 T8
SCLCR/L1010F06 10 10 80 12 10 12
SCLCR/L1212F09 12 12 80 16 12 16 CC**09T3** M3.5X9 T15
SCLCR/L1616H09 16 16 100 16 16 20
SCLCR/L2020K09 20 20 125 16 20 25
SCLCR/L2525M09 25 25 150 16 25 32
SCLCR/L2020K12 20 20 125 20 20 25 CC**1204** M5X12 T20
SCLCR/L2525M12 25 25 150 20 25 32
SCLCR/L3232P12 32 32 170 20 32 40

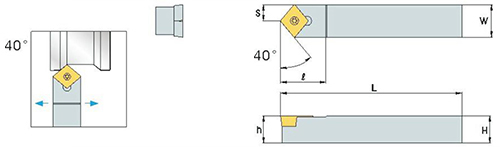

      6.  SCMCN-100  Turning tool Kr 40° and relief angle α7°

external-S   external-S
CC type insertTurning tool with Kr 40° and relief angle α7°



    SCMCN tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCMCN1010F06-100 10 10 80 13 10 5 CC**0602 M2.5X6 T8
SCMCN1212F09-100 12 12 80 18 12 6 CC**09T3** M3.5X9 T15
SCMCN1616H09-100 16 16 100 18 16 8
SCMCN2020K09-100 20 20 125 18 20 10
SCMCN2525M09-100 25 25 150 18 25 12.5
SCMCN2020K12-100 20 20 125 23 20 10 CC**1204** M5X12 T20
SCMCN2525M12-100 25 25 150 23 25 12.5




      7. SCMCN Entering angle Kr 50 ° and relief angle α7°


external-S     external-S
CC type insertTurning tool with Kr 50° and relief angle α7°



    SCMCN tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCMCN1010F06 10 10 80 10 10 5 CC**0602 M2.5X6 T8
SCMCN1212F09 12 12 80 15 12 6 CC**09T3** M3.5X9 T15
SCMCN1616H09 16 16 100 15 16 8
SCMCN2020K09 20 20 125 15 20 10
SCMCN2525M09 25 25 150 15 25 12.5
SCMCN2020K12 20 20 125 20 20 10 CC**1204** M5X12 T20
SCMCN2525M12 25 25 150 20 25 12.5

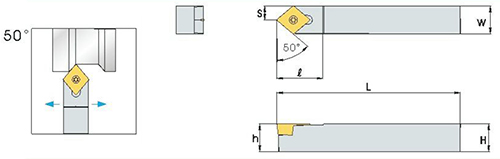

      8.  SCSCR/L  Entering angle Kr 50° and relief angle α7°


external-S     external-S
CC type insertTurning tool with Kr 50° and relief angle α7°



    SCSCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SCSCR/L1212F06 12 12 80 18 12 16 CC**0602** M2.5X6 T8
SCSCR/L1616H06 16 16 100 18 16 20

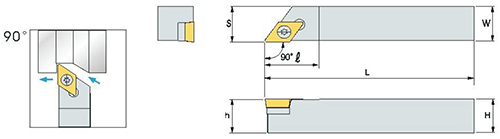

      9.  SDACR/L  turning tool holder Kr 90° and relief angle α7°

external-S     external-S
DC type insertTurning tool with Kr 90° and relief angle α7°



     SDACR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SDACR/L0808F07 8 8 80 15 8 8 DC**0702** M2.5X8 T8
SDACR/L1010F07 10 10 80 15 10 10
SDACR/L1212F07 12 12 80 15 12 12
SDACR/L1212H11 12 12 100 22 12 12 DC**11T3** M3.5X9 T15
SDACR/L1616H11 16 16 100 22 16 16
SDACR/L2020K11 20 20 125 22 20 20
SDACR/L2525M11 25 25 150 22 25 25




      10.  SDFCR/L  Entering angle Kr 91° and relief angle α7°

external-S     external-S
DC type insertTurning tool with Kr 91° and relief angle α7°



    SDFCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SDFCR/L1212H07 12 12 100 8 12 16 DC**0702 M2.5X8 T8
SDFCR/L1212H11 12 12 100 14 12 16 DC**11T3** M3.5X9 T15
SDFCR/L1616H11 16 16 100 14 16 20

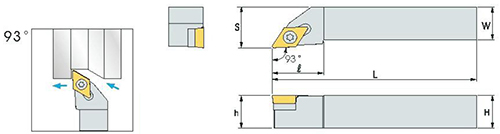

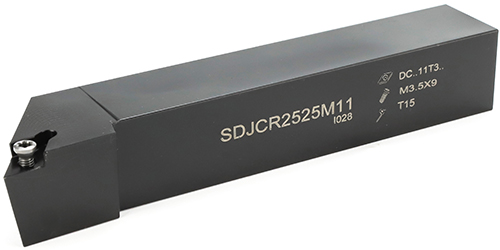

      11.  SDJCR/L  cutting tool with Kr 93° and relief angle α7°

external-SDC type insert external-S

Turning tool holder SDJCR


external-S
Turning tool with Kr 93° and relief angle α7°




    SDJCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SDJCR/L1010F07 10 10 80 14 10 12 DC**0702** M2.5X8 T8
SDJCR/L1212F07 12 12 80 14 12 16
SDJCR/L1616H07 16 16 100 14 16 20
SDJCR/L1212F11 12 12 80 20 12 16 DC**11T3** M3.5X9 T15
SDJCR/L1616H11 16 16 100 20 16 20
SDJCR/L2020K11 20 20 125 20 20 25
SDJCR/L2525M11 25 25 150 22 25 32
SDJCR/L3232P11 32 32 170 23 32 40
SDJCR/L4040R11 40 40 200 25 40 50

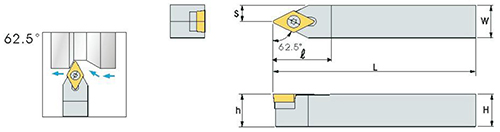

      12.  SDNCN  Entering angle Kr 62.5° and relief angle α7°

external-S     external-S
DC type insertTurning tool with Kr 62.5° and relief angle α7°



    SDNCN tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SDNCN0808F07 8 8 80 14 8 4 DC**0702** M2.5X6 T8
SDNCN1010F07 10 10 80 14 10 5
SDNCN1212F07 12 12 80 14 12 6
SDNCN1212H11 12 12 100 21 12 6 DC**11T3** M3.5X9 T15
SDNCN1616H11 16 16 100 21 16 8
SDNCN2020K11 20 20 125 21 20 10
SDNCN2525M11 25 25 150 21 25 12.5

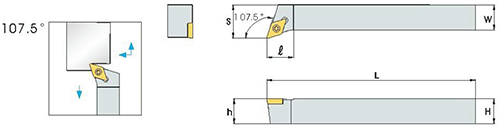

      13.  SDQCR/L  Entering angle Kr 107.5° and relief angle α7°



external-S     external-S
DC type insertTurning tool with Kr 107.5° and relief angle α7°



    SDQCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SDQCR/L1010F07 10 10 80 5 10 12 DC**0702** M2.5X8 T8
SDQCR/L1212F07 12 12 80 13 12 16
SDQCR/L1212F11 12 12 80 14 12 16 DC**11T3** M3.5X9 T15
SDQCR/L1616H11 16 16 100 14 16 20
SDQCR/L2020K11 20 20 125 16 20 25
SDQCR/L2525M11 25 25 150 22 25 32




      14.  SRACR  Relief angle α7°

external-S RC type insert external-S

Turning tool holder SRACR


external-S
Turning tool SRACR/L with Relief angle α7°




    SRACR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SRACR/L1616H08 16 16 100 16 16 16.5 RC**0803** M3X8 T8
SRACR/L2020K08 20 20 125 16 20 20.5
SRACR/L2525M08 25 25 150 16 25 25.5
SRACR/L2020K10 20 20 125 20.3 20 20.5 RC**1003** M3.5X9 T15
SRACR/L2525M10 25 25 150 20.3 25 25.5

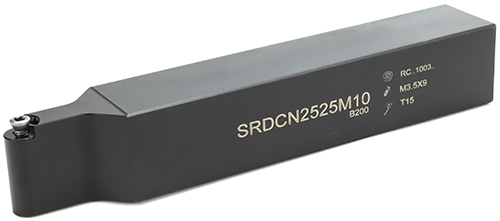

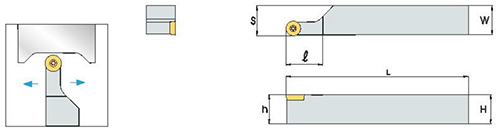

      15.  SRDCN  Relief angle α7°

external-S RC type insert external-S

Turning tool holder SRDCN


external-S
Turning tool SRDCN with Relief angle α7°




    SRDCN tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SRDCN1616H08 16 16 100 16 16 8 RC**0803** M3X8 T8
SRDCN2020K08 20 20 125 16 20 10
SRDCN2525M08 25 25 150 16 25 12.5
SRDCN1616H10 16 16 100 20.3 16 8 RC**1003** M3.5X9 T15
SRDCN2020K10 20 20 125 20.3 20 10
SRDCN2525M10 25 25 150 20.3 25 12.5

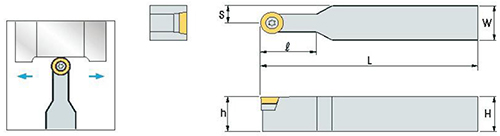

      16.  SRGCR/L  Relief angle α7°



external-S     external-S
RC type insertTurning tool SRGCR/L with Relief angle α7°



    SRGCR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Screw Wrench
Тип  Плас винт Ключ
SRGCR/L1616H08 16 16 100 20 16 20 RC**0803 M3X8 T8
SRGCR/L1616H10 16 16 100 20 16 20 RC**1003** M3.5X9 T15
SRGCR/L2020K10 20 20 125 20 20 25
SRGCR/L2525M10 25 25 150 20 25 32
