Turning Tool with Both wedge and pin clamp


Turning tools with wedge and pin clamp system, including both Wedge-shaped clamping plate and a internal pin，securing the insert from the top and a hole, are especially suitable for all kinds of heavy processing

      external-B    external-B

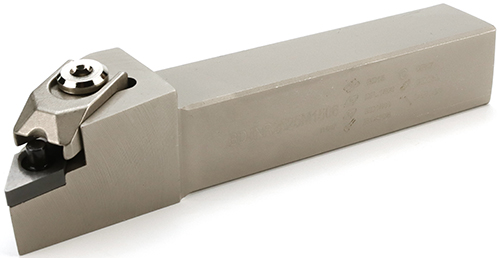

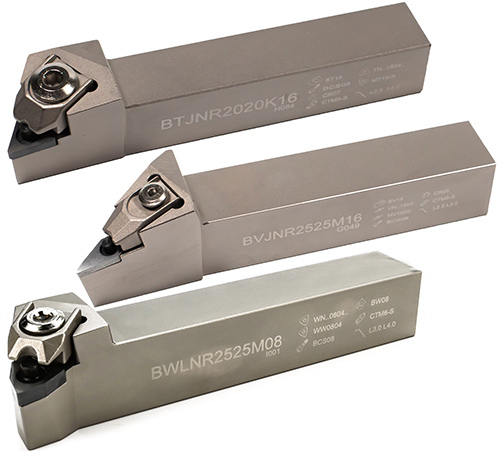

External Turning Tool holder，Both wedge and pin clamp system Both wedge and pin clamp



          external-B

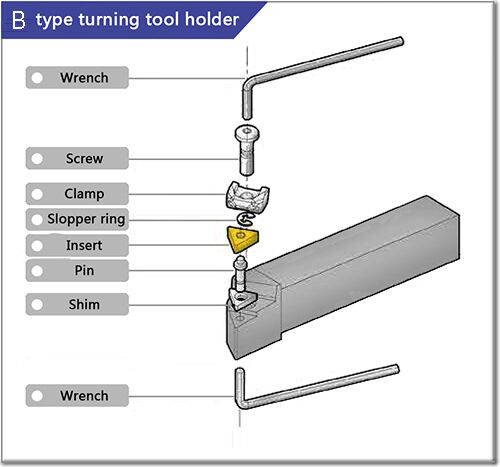

          The composition of the Turning Tool with Both wedge and pin clamp

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.
  4. Tool holders are nickel coated for better wear resistance and anti-corrosion protection ，more aesthetically pleasing.

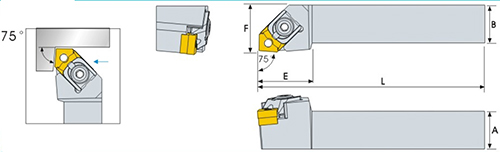

      1.   BCBNR/L   turning tool Kr 75°



external-B external-B
CN type insertTurning tool with Kr 75°



     BCBNR/L tool holder parameters    (mm)

Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BCBNR/L2020K12 20 20 125 34 25 CN**1204** MC1204 CTM6-S BC12-100 CR07 BCS08 L3.0, L4.0
BCBNR/L2525M12 25 25 150 34 26
BCBNR/L3232P12 32 32 170 36 31

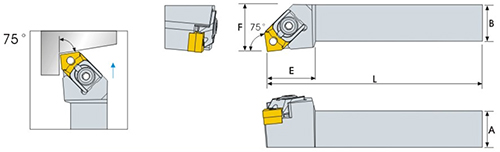

      2.   BCKNR/L   turning edge anglel 75°

external-B CN type insert external-B

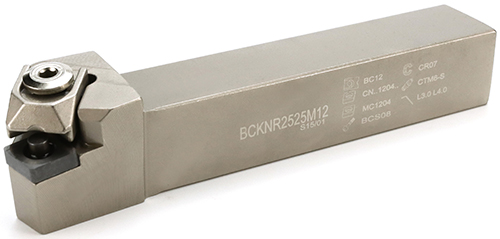

Turning tool holder BCKNR


external-B
Turning tool with Kr 75°




     BCKNR/L tool holder parameters    (mm)

Designation           size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BCKNR/L2020K12 20 20 125 32 24 CN**1204** MC1204 CTM6-S BC12-100 CR07 BCS08 L3.0, L4.0
BCKNR/L2525M12 25 25 150 32 32
BCKNR/L3232P12 32 32 170 34 40




      3.    BCLNR/L   Turing tool Kr 95°

external-B CN type insert external-B

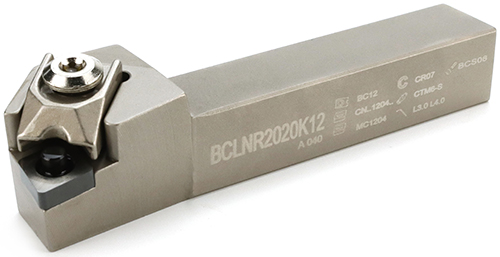

Turning tool holder BCLNR


external-B
Turning tool with Kr 95°




    BCLNR/L tool holder parameters    (mm)

Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BCLNR/L2020K12 20 20 125 32 25 CN**1204** MC1204 CTM6-S BC12 CR07 BCS08 L3.0, L4.0
BCLNR/L2525M12 25 25 150 37 32
BCLNR/L3232P12 32 32 170 36 40
BCLNR/L3232P16 32 32 170 38 40 CN**1606 MC1604 CTM8-S BC12 CR07 BCS08 L3.0, L4.0

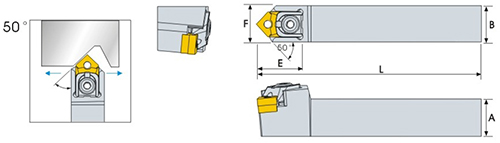

      4.   BCMNN   Turing tool Kr 50°


external-B external-B
CN type insertTurning tool with Kr 50°



    BCMNN tool holder parameters    (mm)


Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BCMNN2020K12 20 20 125 42 10 CN**1204** MC1204 CTM6-S BC12 CR07 BCS08 L3.0, L4.0
BCMNN2525M12 25 25 150 42 12.5
BCMNN3232P12 32 32 170 42 16

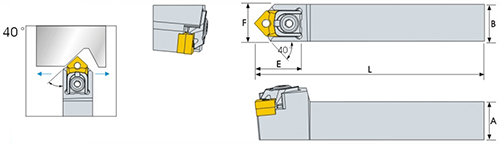

      5.  BCMNN-100  Turning tool Kr 40°


external-B external-B
CN type insertTurning tool with Kr 40°



     BCMNN-100 tool holder parameters    (mm)

Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Пластины Прок Штыр  Зажи Скло винт Ключ
BCMNN2020K12-100 20 20 125 40 10 CN**1204** MC1204 CTM6-S BC12-100 CR07 BCS08 L3.0, L4.0
BCMNN2525M12-100 25 25 150 40 12.5
BCMNN3232P12-100 32 32 170 40 16




      6.  BDJNR/L   turning tool holder Kr 93°

external-B DN type insert external-B

Turning tool holder BDJNR


external-B

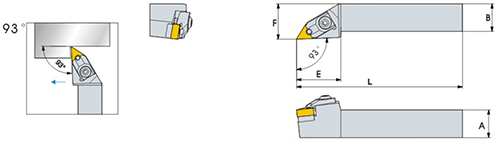

Turning tool with Kr 93°




    BDJNR/L tool holder parameters   (mm)


Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BDJNR/L2020K15 20 20 125 46 26 DN**1504** DN**1506** MD1504   MD1506 CTM6-L BD15 CR07 BCS08 L3.0, L4.0
BDJNR/L2525M15 25 25 150 46 32
BDJNR/L3232P15 32 32 170 46 40

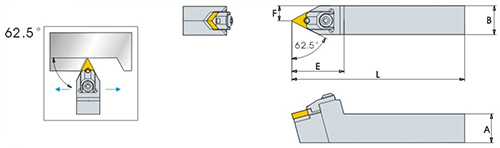

      7. BDNNN  Cutting edge angle Kr 62.5°


external-B external-B
DN type insertTurning tool with Kr 62.5°



    BDNNN tool holder parameters   (mm)

Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BDNNN2020K15 20 20 125 50 10 DN**1504** DN**1506** MD1504   MD1506 CTM6-L BD15 CR07 BCS08 L3.0, L4.0
BDNNN2525M15 25 25 150 50 12.5
BDNNN3232P15 32 32 170 50 16

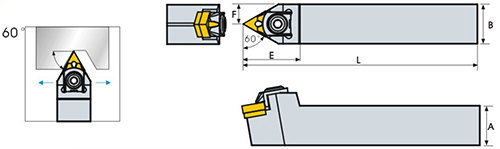

      8.  BTENN  cutting edge angle Kr 60°


external-B external-B
TN type insertTurning tool with Kr 60°



    BTENN tool holder parameters   (mm)


Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BTENN2020K16 20 20 125 40 10 TN**1604** MT16-S CTM5-S BT16 CR07 BCS08 L2.5, L4.0
BTENN2525M16 25 25 150 40 12.5
BTENN3232P16 32 32 170 40 16

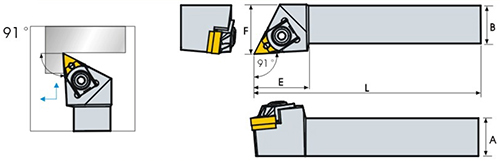

      9.  BTGNR/L  Turing tool holder Kr 91°

external-B external-B
TN type insertTurning tool with Kr 91°



     BTGNR/L tool holder parameters    (mm)

Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BTGNR/L1616H16 16 16 100 30 20.5 TN**1604 MT16-S CTM5-S BT16-N CR05 BCS06 L2.5, L3.0
BTGNR/L2020K16 20 20 125 35 25 TN**1604** MT16-S CTM5-S BT16 CR07 BCS08 L2.5, L4.0
BTGNR/L2525M16 25 25 150 35 32
BTGNR/L3232P16 32 32 170 35 40

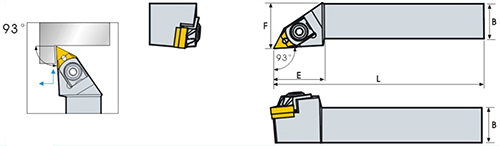

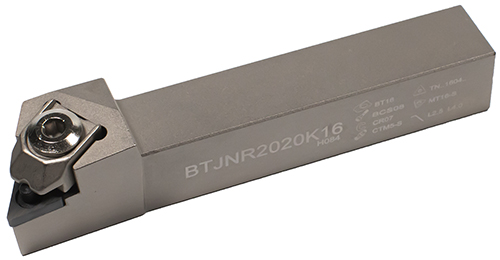

      10.  BTJNR/L  Cutting edge angle Kr 93°



external-B TN type insert external-B

Turning tool holder BTJNR


external-B

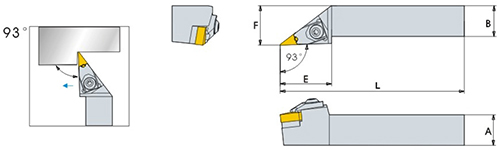

Turning tool with Kr 93°




    BTJNR/L tool holder parameters   (mm)

Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BTJNR/L1616H16 16 16 100 30 20 TN**1604 MT16-S CTM5-S BT16-N CR05 BCS06 L2.5, L3.0
BTJNR/L2020K16 20 20 125 35 25 TN**1604** MT16-S CTM5-S BT16 CR07 BCS08 L2.5, L4.0
BTJNR/L2525M16 25 25 150 35 32
BTJNR/L3232P16 32 32 170 35 40

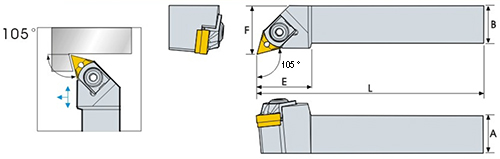

      11.  BTQNR/L  Cutting tool with Kr 105°



external-B external-B
TN type insertTurning tool with Kr 105°



    BTQNR/L tool holder parameters   (mm)

Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BTQNR/L2020K16 20 20 125 35 25 TN**1604** MT16-S CTM5-S BT16 CR07 BCS08 L2.5, L4.0
BTQNR/L2525M16 25 25 150 35 32
BTQNR/L3232P16 32 32 170 35 40




      12.  BVJNR/L  Cutting edge angle Kr 93°

external-B VN type insert external-B

Turning tool holder BVJNR


external-B
Turning tool with Kr 93°




    BVJNR/L tool holder parameters   (mm)

  Designation size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BVJNR/L2020K16 20 20 125 47 25 VN**1604** MV1603 CTM5-S BV16 CR05 BCS06 L2.5, L3.0
BVJNR/L2525M16 25 25 150 47 32
BVJNR/L3232P16 32 32 170 47 40

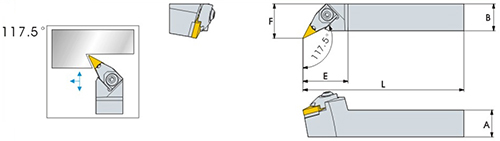

      13.  BVQNR/L  Cutting edge angle Kr 117.5°



external-B external-B
VN type insertTurning tool with Kr 117°



    BVQNR/L tool holder parameters   (mm)

   Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BVQNR/L2020K16 20 20 125 45 25 VN**1604** MV1603 CTM5-S BV16 CR05 BCS06 L2.5, L3.0
BVQNR/L2525M16 25 25 150 45 32
BVQNR/L3232P16 32 32 170 45 40

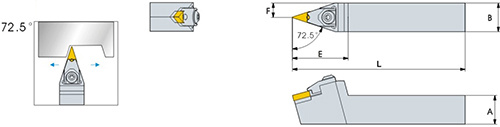

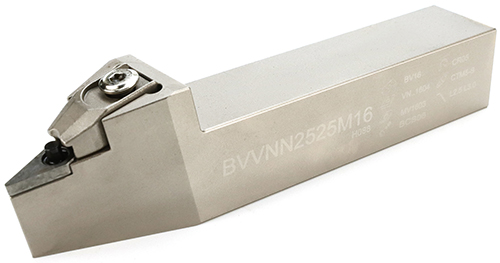

      14.  BVVNN  Cutting edge angle Kr 72.5°

external-B VN type insert external-B

Turning tool holder BVVNN


external-B
Turning tool with Kr 72.5°




    BVVNN tool holder parameters   (mm)

Designation size / Размер
A B L E F
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BVVNN2020K16 20 20 125 48 10 VN**1604** MV1603 CTM5-S BV16 CR05 BCS06 L2.5, L3.0
BVVNN2525M16 25 25 150 48 12.5
BVVNN3232P16 32 32 170 48 16

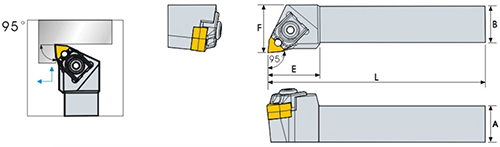

      15.  BWLNR/L  tool holder Kr 95°

external-B WN type insert external-B

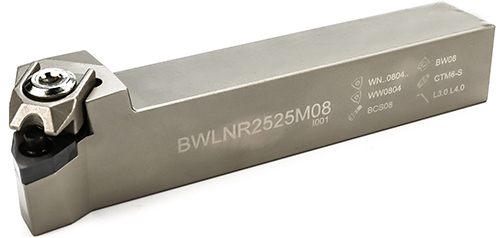

Turning tool holder BWLNR


external-B

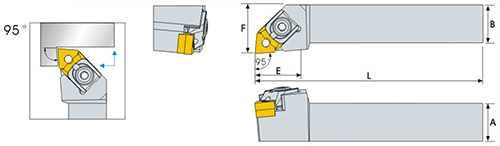

Turning tool with Kr 95°




    BWLNR tool holder parameters   (mm)

Designation  size / Размер
A B L E F Inserts Shim Pin Clamp Slopper Screw Wrench
Тип  Плас Прок Штыр  Зажи Скло винт Ключ
BWLNR1616H06 16 16 100 28 20 WN**0604** MW0603 CTM5-S BW06 CR05 BCS06 L2.5, L3.0
BWLNR2020K06 20 20 125 28 25
BWLNR2525M06 25 25 150 28 32
BWLNR3232P06 32 32 170 32 40
BWLNR2020K08 20 20 125 32 25 WN**0804** MW0804 CTM6-S BW08 CR07 BCS08 L3.0, L4.0
BWLNR2525M08 25 25 150 32 32
BWLNR3232P08 32 32 170 32 40
