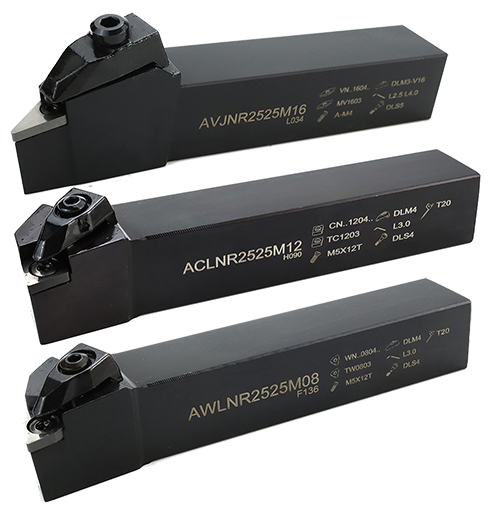

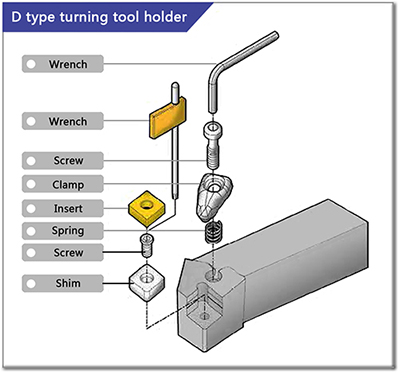

Turning Tool with Double clamp system



Turning tools，external，Double Clamp system

Top and hole clamping （Multi clamp，screw and clamp）

Feature

1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

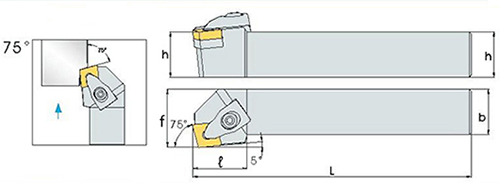

      1.   DCBNR/L   turning tool Kr 75°

     CN type inser Turning tool with Cutting edge angle 75°

     DCBNR/L tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Screw

Shim

Screw

Spring

Wrench

Тип

Пластины

Зажим

Зажимной винт

Прокладка

винт

Пружина

Ключ

DCBNR/L2020K12

20

20

125

31

17

CN**1204**

DLM4

DLS4

TC1203

M5X12T

DSP4

L3.0, T20

DCBNR/L2525M12

25

25

150

32

22

>

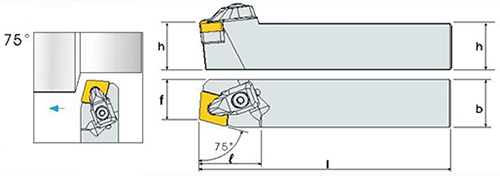

      2.   DCKNR/L   turning tool Kr 75° for end-cutting

CN type inserTurning tool with Cutting edge angle 75° for end-cutting

     DCKNR/L tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Screw

Shim

Screw

Spring

Wrench

Тип

Пластины

Зажим

Зажимной винт

Прокладка

винт

Пружина

Ключ

DCKNR/L2020K12

20

20

125

29

25

CN**1204**

DLM4

DLS4

TC1203

M5X12T

DSP4

L3.0, T20

DCKNR/L2525M12

25

25

150

29

32

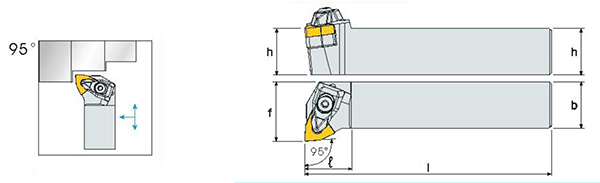

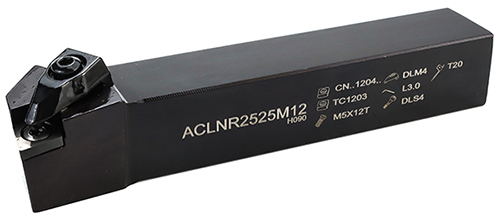

      3.    DCLNR/L   tool holder Kr 95°



    DCLNR/L tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DCLNR/L2

20

20

125

30

25

CN**1204**

DLM4

DLS4

TC1203

M5X12T

DSP4

L3.0, T20

DCLNR/L2

25

25

150

30

32

DCLNR/L3

25

25

170

30

40

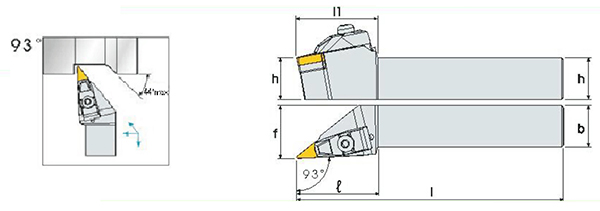

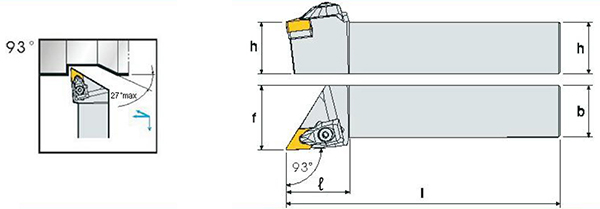

      4.   DDJNR/L   Cutting edge angle Kr 93°



    DDJNR/L tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DDJNR/L2020K11

20

20

125

30

25

DN**1204**

DLM3

DLS3

MD1103

A-M4

DSP3

L2.5, L3.0

DDJNR/L2525M11

25

25

150

30

32

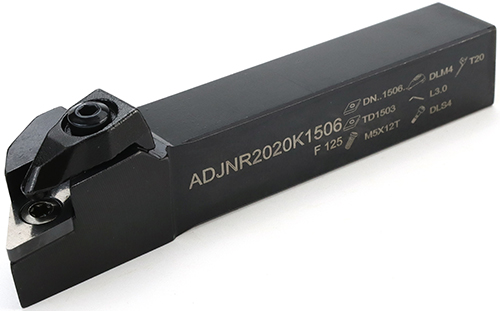

DDJNR/L2020K1506

20

20

125

39

25

DN**1506**

DLM4

DLS4

TD1503

M5X12T

DSP4

L3.0, T20

DDJNR/L2525M1506

25

25

150

39

32

DDJNR/L2020K1504

20

20

125

39

25

DN**1504**

DLM4

DLS4

TD1503

M5X12T

DSP4

L3.0, T20

DDJNR/L2525M1504

25

25

150

39

32

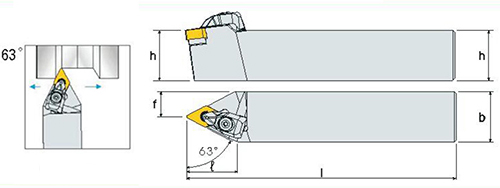

      5.  DDPNN   Cutting edge angle Kr 63°

DN type insertTurning tool with Cutting edge angle 63°

     DDPNN tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DDPNN2525M11

25

25

150

39

12.5

DN**1104

DLM3

DLS3

MD1103

A-M4

DSP3

L2.5

DDPNN2525M1504

25

25

150

39

12.5

DN**1504

DLM4

DLS4

TD1503

M5X12T

DSP4

L3.0, T20

DDPNN2525M1506

25

25

150

39

12.5

DN**1506

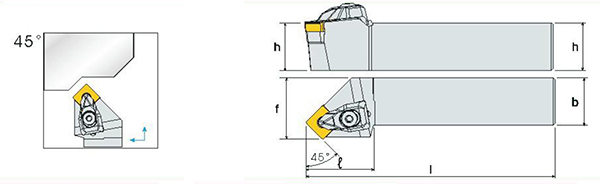

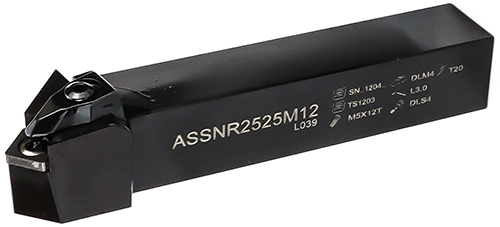

      6.  DSSNR/L   turning tool holder Kr 45°

    DSSNR/L tool holder parameters   (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DSSNR/L2020K12

20

20

125

34

25

SN**1204**

DLM4

DLS4

TS1203

M5X12T

DSP4

L3.0, T20

DSSNR/L2525M12

25

25

150

34

32

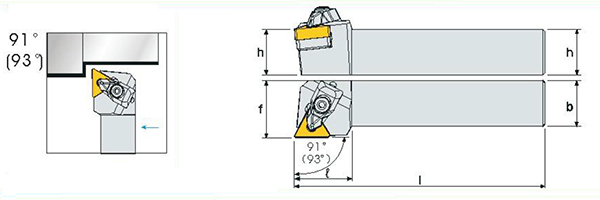

      7. DTGNR/L & DTJNR/L   Cutting edge angle Kr 91° or Kr 93°

    DTGNR/L & DTJNR/L tool holder parameters   (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DTGNR/L2020K16

20

20

125

30

25

TN**1604**

DLM3

DLS3

MT1603

A-M4

DSP3

L2.5, L3.0

DTGNR/L2525M16

25

25

150

30

32

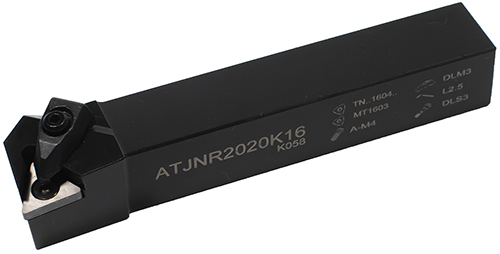

DTJNR/L2020K16

20

20

125

30

25

DTJNR/L2525M16

25

25

150

30

32

      8.  DVJNR/L   cutting tool with Kr 93° Cutting edge angle

    DTGNR/L & DTJNR/L tool holder parameters   (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DVJNR/L2020K16

20

20

125

48

25

VN**1604**

DLM3-V16

DLS5

MV1603

A-M4

DSP5

L2.5, L4.0

DVJNR/L2525M16

25

25

150

48

32

      9.  DVVNN   Cutting edge angle Kr 72.5°

VN type insert Turning tool with Cutting edge angle 72.5°

     DVVNN tool holder parameters    (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DVVNN2020K16

20

20

125

49

10

VN**1604**

DLM3-V16

DLS5

MV1603

A-M4

DSP5

L2.5, L4.0

DVVNN2525M16

25

25

150

49

12.5

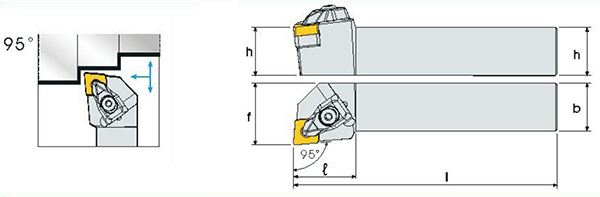

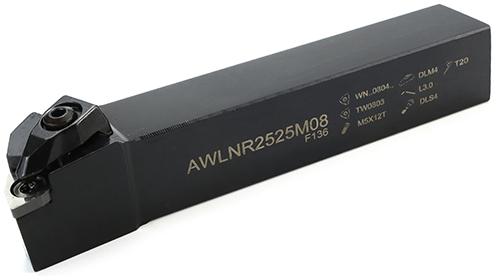

      10.  DWLNR/L   Turning tool Kr 95°

    DWLNR/L tool holder parameters   (mm)

Designation

size / Размер

h

b

I

ℓ

f

Inserts

Clamp

Clamp Sc

Shim

Screw

Spring

Wrench

Тип

Плас

Зажи

Зажи

Прок

винт

Пруж

Ключ

DWLNR/L2020K06

20

20

125

28

25

WN**0604**

DLM3

DLS3

MW0603

A-M4

DSP3

L2.5, L3.0

DWLNR/L2525M06

25

25

150

28

32

DWLNR/L2020K08

20

20

125

31

25

WN**0804**

DLM4

DLS4

TW0803

M5X12T

DSP4

L3.0, T20

DWLNR/L2525M08

25

25

150

31

32
