Turning Tool with Multi clamp system (FIRST)


Turning tools with multiple clamping, including a clamping plate and a internal pin，securing the insert from the top and a hole, are widely used for general processing.

   external-M    external-M

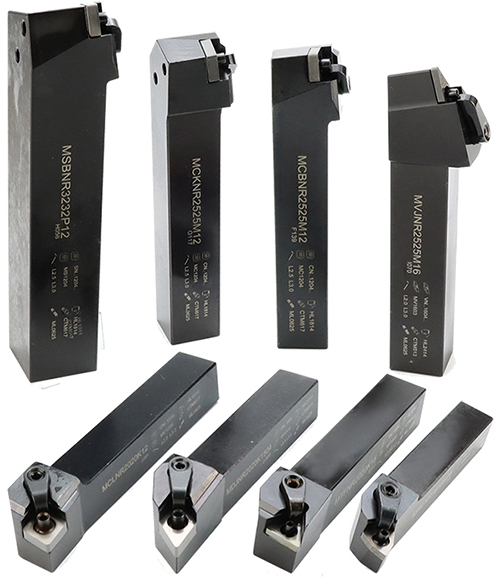

      External Turning Tool holder. Multi clamp system Top and hole clamping
（Multi clamp，pin and clamp）



          external-M

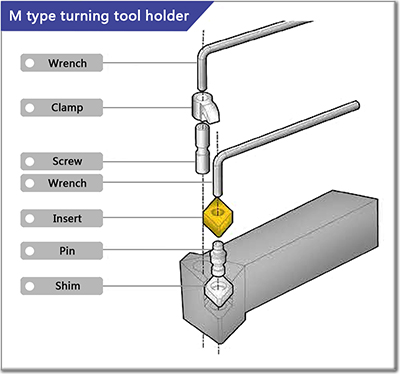

           The composition of the Turning Tool with Multi clamp system

    Feature
  1. Our tool holders are processed after quenching, with minimal deformation and stable dimensions.
  2. The consistency of the center height of the turning tools is not exceeding 0-0.16mm.
  3. The consistency of the dimensions at both ends of the tool holder is not exceeding 0.02mm.

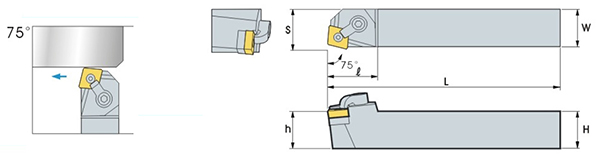

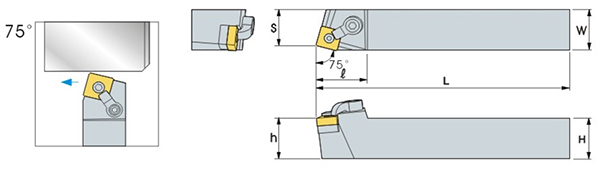

      1.   MCBNR/L   turning tool Kr 75°

external-M CN type insert external-M

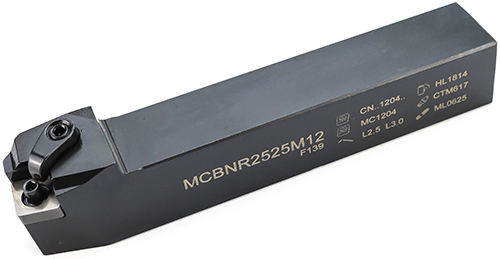

Turning tool holder MCBNR


external-M
Turning tool with Cutting edge angle 75°


     MCBNR/L tool holder parameters    (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCBNR/L2020K12 20 20 125 32 20 20.7 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCBNR/L2525M12 25 25 150 32 25 25.2
MCBNR/L3232P12 32 32 170 32 32 30.8
MCBNR/L3232P16 32 32 170 40 32 31.9 CN**1606 MC1604 CTM822 HL2217 ML0830 L3.0, L4.0
MCBNR/L3232P19 32 32 170 40 32 32.7 CN**1906 MC1904 CTM1022 HL2217 ML0830 L4.0


>

      2.   MCFNR/L   turning tool Kr 91° for end-cutting

external-M external-M
CN type insertTurning tool with Cutting edge angle 91° for end-cutting



     MCFNR/L tool holder parameters    (mm)

Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCFNR/L2020K12 20 20 125 28 20 25.5 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCFNR/L2525M12 25 25 150 30 25 32
MCFNR/L3232P12 32 32 170 30 32 40

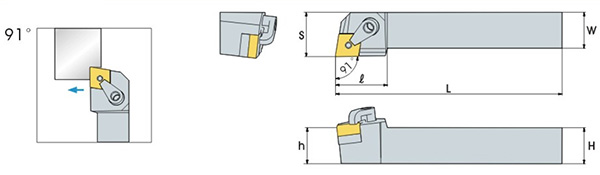

      3.    MCGNR/L   Cutting edge angle Kr 91°


external-Mexternal-M
CN type insertTurning tool with Cutting edge angle 91°



    MCGNR/L tool holder parameters    (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCGNR/L2020K12 20 20 125 28 20 25 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCGNR/L2525M12 25 25 150 30 25 32
MCGNR/L3232P12 32 32 170 30 32 40
MCGNR/L3232P16 32 32 170 36 32 40 CN**1606 MC1604 CTM822 HL2217 ML0830 L3.0, L4.0
MCGNR/L3232P19 32 32 170 38 32 40 CN**1906 MC1904 CTM1022 HL2217 ML0830 L4.0




      4.   MCKNR/L   tool holder Kr 75° for end-cutting


external-M CN type insert external-M

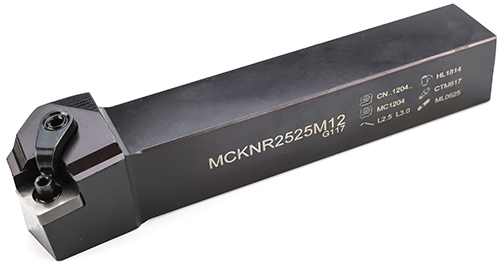

Turning tool holder MCKNR


external-M
Turning tool with Cutting edge angle 75° for end-cutting


    MCKNR/L tool holder parameters    (mm)


Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCKNR/L2020K12 20 20 125 28 20 25 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCKNR/L2525M12 25 25 150 28 25 32
MCKNR/L3232P12 32 32 170 35 32 40
MCKNR/L3232P16 32 32 170 35 32 40 CN**1606 MC1604 CTM822 HL2217 ML0830 L3.0, L4.0
MCKNR/L3232P19 32 32 170 38 32 40 CN**1906 MC1904 CTM1022 HL2217 ML0830 L4.0



      5.  MCLNR/L  Turning tool Kr 95° for both outside-cutting and end-cutting

external-M CN type insert external-M

Turning tool holder MCLNR


external-M
Turning tool with Cutting edge angle 95° for both outside-cutting and end-cutting




     MCLN/L tool holder parameters    (mm)


Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCLNR/L1616H12 16 16 100 30 16 20 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCLNR/L2020K12 20 20 125 32 20 25
MCLNR/L2525M12 25 25 150 32 25 32
MCLNR/L3232P12 32 32 170 32 32 40
MCLNR/L2525M16 25 25 150 34 25 32 CN**1606** MC1604 CTM822 HL2217 ML0830 L3.0, L4.0
MCLNR/L3232P16 32 32 170 34 32 40
MCLNR/L3232P19 32 32 170 38 32 40 CN**1906** MC1904 CTM1022 HL2217 ML0830 L4.0
MCLNR/L4040P19 40 40 200 38 40 50

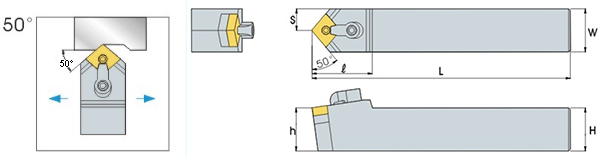

      6.  MCMNN   turning tool holder Kr 50°

external-M external-M
CN type insertTurning tool with Cutting edge angle 50°



    MCMNN tool holder parameters   (mm)


Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCMNN2020K12 20 20 125 35 20 10 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCMNN2525M12 25 25 150 35 25 12.5
MCMNN3232P12 32 32 170 38 32 16
MCMNN2525M16 25 25 150 43 25 12.5 CN**1606 MC1604 CTM822 HL2217 ML0830 L3.0, L4.0

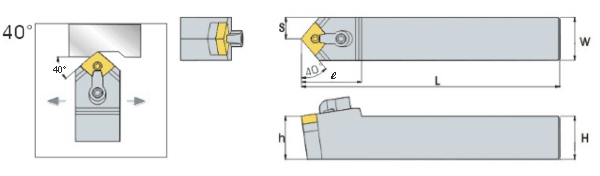

      7. MCMNN-100   Cutting tool Kr40°



external-Mexternal-M
CN type insertTurning tool with Cutting edge angle 40°



    MCMNN-100 tool holder parameters   (mm)


Designation

 size / Размер

　

　

　

　

　

　

H

W

L

ℓ

h

s

Inserts

Shim

Pin

Clamp

Screw

Wrench

Тип

Пластины

Прокладка

Штырь

 Зажим

винт

Ключ

MCMNN2020K12-100

20

20

125

35

20

10

CN**1204**

MC1204

CTM617

HL1814

ML0625

L2.5, L3.0

MCMNN2525M12-100

25

25

150

35

25

12.5

MCMNN3232P12-100

32

32

170

35

32

16

MCMNN2525M16-100

25

25

150

43

25

12.5

CN**1606**

MC1604

CTM822

HL2217

ML0830

L3.0, L4.0

MCMNN3232P16-100

32

32

170

45

32

16

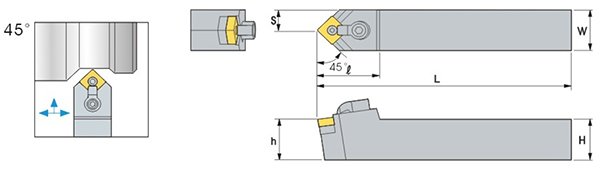

      8.  MCSNR/L  cutting tool with Kr 45° for both outside-cutting and end-cutting



external-M external-M
CN type insertcutting tool with Kr 45° for both outside-cutting and end-cutting



    MCSNR/L tool holder parameters   (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MCSNR/L2020K12 20 20 125 34 20 25 CN**1204** MC1204 CTM617 HL1814 ML0625 L2.5, L3.0
MCSNR/L2525M12 25 25 150 35 25 32
MCSNR/L3232P12 32 32 170 35 32 40
MCSNR/L3232P19 32 32 170 36 32 40 CN**1906 MC1904 CTM1022 HL2217 ML0830 L4.0

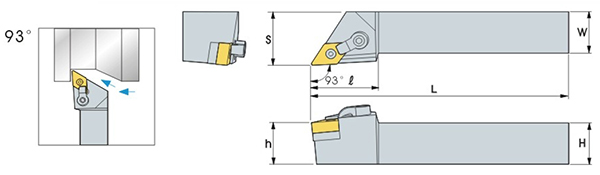

      9.  MDJNR/L  Cutting edge angle 93°

external-M DN type insert external-M

Turning tool holder MDJNR




external-M
   Turning tool with Cutting edge angle 93°




     MDJNR/L tool holder parameters    (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MDJNR/L1616H11 16 16 100 34 16 20 DN**1104** MD1103 CTM513 HL1814 ML0625 L2.0, L3.0
MDJNR/L2020K11 20 20 125 34 20 25
MDJNR/L2525M11 25 25 150 34 25 32
MDJNR/L2020K15 20 20 125 38 20 25 DN**1504**    DN**1506** MD1506   MD1504 CTM619 HL2114 ML0625 L2.5, L3.0
MDJNR/L2525M15 25 25 150 38 25 32
MDJNR/L3232P15 32 32 170 40 32 40




      10.  MDPNN  Cutting edge angle Kr 62.5°



external-M external-M
DN type insert Turning tool with Cutting edge angle 62.5°



    MDPNN tool holder parameters   (mm)

  Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MDPNN1616H11 16 16 100 38 16 8 DN**1104** MD1103 CTM513 HL2114 ML0625 L2.0, L3.0
MDPNN2020K11 20 20 125 38 20 10
MDPNN2020K15 20 20 125 43 20 10 DN**1504**    DN**1506** MD1506   MD1504 CTM619 HL2114 ML0625 L2.5, L3.0
MDPNN2525M15 25 25 150 43 25 12.5




      11.  MDQNR/L  Cutting edge angle Kr 107.5°



external-M external-M
DN type insertTurning tool with Cutting edge angle 107.5°



    MDQNR/L tool holder parameters   (mm)

Designation  size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MDQNR/L1616H11 16 16 100 31 16 20 DN**1104 MD1103 CTM513 HL1814 ML0625 L2.0, L3.0
MDQNR/L2020K11 20 20 125 31 20 25 DN**1104** MD1103 CTM513 HL2114 ML0625 L2.0, L3.0
MDQNR/L2525M11 25 25 150 34 25 32
MDQNR/L2020K15 20 20 125 37 20 25 DN**1504**    DN**1506** MD1506   MD1504 CTM619 HL2114 ML0625 L2.5, L3.0
MDQNR/L2525M15 25 25 150 34 25 32
MDQNR/L3232P15 32 32 170 37 32 40




      12.  MSBNR/L  Cutting edge angle Kr 75°

external-M SN type insert external-M

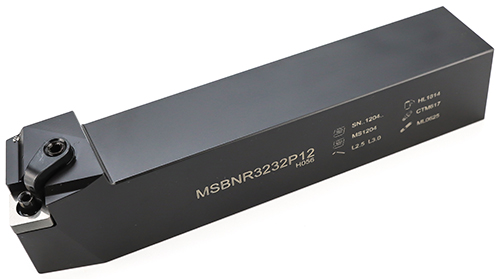

Turning tool holder MSBNR




external-M
Turning tool with Cutting edge angle 75°




    MSBNR/L tool holder parameters   (mm)

Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MSBNR/L2020K12 20 20 125 32 20 17 SN**1204** MS1204 CTM617 HL1814 ML0625 L2.5, L3.0
MSBNR/L2525M12 25 25 150 32 25 22
MSBNR/L3232P12 32 32 170 35 32 29
MSBNR/L3232P19 32 32 170 42 32 27 SN**1906** MS1904 CTM1022 HL2217 ML0830 L4.0
MSBNR/L4040R19 40 40 200 42 40 35

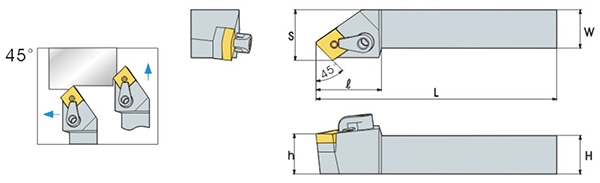

      13.  MSDNN   Cutting edge angle Kr 45°

external-M SN type insert external-M
Turning tool holder MSDNN




external-M
Turning tool with Cutting edge angle 45°




    MSDNN tool holder parameters   (mm)

             Designation size / Размер
H W L ℓ h s Inserts Shim Pin Clamp Screw Wrench
Тип  Плас Прок Штыр  Зажи винт Ключ
MSDNN1616H12 16 16 100 35 16 8 SN**1204** MS1204 CTM617 HL1814 ML0625 L2.5, L3.0
MSDNN12020K12 20 20 125 35 20 10
MSDNN12525M12 25 25 150 35 25 12.5
MSDNN13232P12 32 32 170 38 32 16
MSDNN12525M15 25 25 150 43 25 12.5 SN**1506** MS1504 CTM822 HL2217 ML0830 L3.0, L4.0
MSDNN13232P15 32 32 170 45 32 16
MSDNN13232P19 25 25 170 47 32 16 SN**1906** MS1904 CTM1022 HL2217 ML0830 L4.0
MSDNN14040R19 40 40 200 47 40 20
