Parting tool & grooving tool

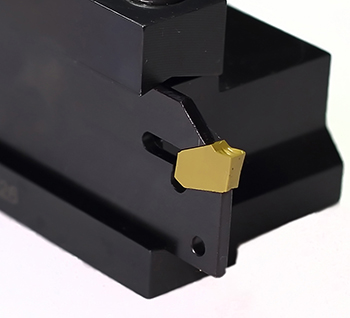

Parting tool & grooving tool with self-clamping system is first choice for parting off and deep grooving for CNC lathes and other lathes.
-
Feature
- With self-clamping system for even greater reliability.
- Either 26mm or 32mm centre height, that is to say in two size of blade H=26mm or H=32mm are available.
- Parting blade & Grooving blade overhang length : up to 60 mm (2.4 inch) (when blade size L= 150mm)
- Cutting width ： from 2mm to 6mm （0.04inch to 0.24inch）

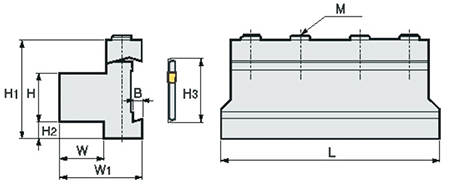

Tool block
| Tool block | Dimensions (mm) | Blades | Wrench | ||||||||
| H | W | H3 | L | H1 | H2 | W1 | B | M | |||
| SMBB 1626 | 16 | 12 | 26 | 86 | 43 | 13 | 30 | 5.3 | 3-M6 | SPB***(S) | L5.0 |
| SMBB 2026 | 20 | 19 | 26 | 86 | 43 | 9 | 38 | 5.3 | 3-M6 | ||
| SMBB 2032 | 20 | 19 | 32 | 100 | 50 | 13 | 38 | 5.3 | 4-M6 | ||
| SMBB 2526 | 25 | 23 | 26 | 86 | 43 | 4 | 42 | 5.3 | 3-M6 | ||
| SMBB 2532 | 25 | 23 | 32 | 110 | 50 | 8 | 42 | 5.3 | 4-M6 | ||
| SMBB 3232 | 32 | 30 | 32 | 110 | 54 | 5 | 48 | 5.3 | 4-M6 | ||

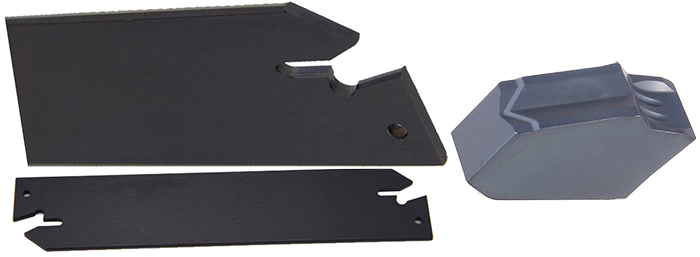

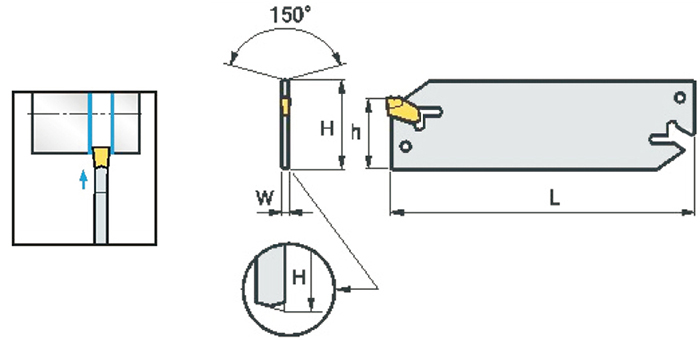

Parting blade & Grooving blade
| parting blade & grooving blade | Dimensions (mm) | Inserts | Wrench | |||
| H | W | L | h | |||
SPB 226-S |
26 | 1.6 | 110 | 21 | SP200, 200R/L |
SW80-S |
SPB 326-S |
26 | 2.4 | 110 | 21 | SP300, 300R/L |
|
SPB 426-S |
26 | 3.2 | 110 | 21 | SP400, 400R/L |
|
SPB 526-S |
26 | 4 | 110 | 21 | SP500, 500R/L |
|
SPB 626-S |
26 | 5.2 | 110 | 21 | SP600, 600R/L |
|
SPB 232-S |
32 | 1.6 | 150 | 25 | SP200, 200R/L |
|
SPB 332-S |
32 | 2.4 | 150 | 25 | SP300, 300R/L |
|
SPB 432-S |
32 | 3.2 | 150 | 25 | SP400, 400R/L |
|
SPB 532-S |
32 | 4 | 150 | 25 | SP500, 500R/L |
|
SPB 632-S |
32 | 5.2 | 150 | 25 | SP600, 600R/L |
|
