Preset Gauge
Preset gauges can be used on CNC machines to quickly and accurately locate the
tool tip position and to rapidly establish tool compensation data.
Preset gage Type-A
• Turn the button of setting-zero from "use" to "test";
• Press down,the small indicator will show "0",keep your hand
and then adjust indicator to be zero at long-needle;
• Turn the button of setting-zero to "use" before use;
• Put on the work piece,cutter touch probe side,when the long-
needle and short -needle moving to "0" at the same time,the
distance of the cutter with work piece is 100mm.
• Press down,the small indicator will show "0",keep your hand
and then adjust indicator to be zero at long-needle;
• Turn the button of setting-zero to "use" before use;
• Put on the work piece,cutter touch probe side,when the long-
needle and short -needle moving to "0" at the same time,the
distance of the cutter with work piece is 100mm.
Preset gauges Type-B

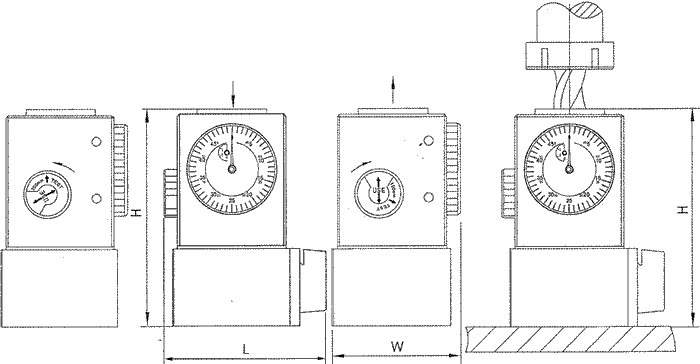

Preset gage sketch
| Height | Range | Grad. | L | W | Explanation |
|---|---|---|---|---|---|
| 50mm | 1.5mm | 0.01mm | 56mm | 57mm | E-1Squre base,Inside indicator,Non-magnetic |
| 50mm | 1.5mm | 0.01mm | 56mm | 57mm | E-2Squre base,Inside indicator,Magnetic |
| 100mm | 1.5mm | 0.01mm | 70mm | 59mm | E-3Magnetic(with switch) |
| Height | Range | Grad. | L | W | Explanation |
|---|---|---|---|---|---|
| 2" | 0.06" | 0.001" | 2.20" | 2.24" | E-4Squre base,Inside indicator,Non-magnetic |
| 2" | 0.06" | 0.001" | 2.20" | 2.24" | E-5Squre base,Inside indicator,Magnetic |
| 2" | 0.06" | 0.0005" | 2.20" | 2.24" | E-6Squre base,Inside indicator,Non-magnetic |
| 2" | 0.06" | 0.0005" | 2.20" | 2.24" | E-7Squre base,Inside indicator,Magnetic |
| 4" | 0.06" | 0.001" | 2.76" | 2.32" | E-8Magnetic(with switch) |
| 4" | 0.06" | 0.0005" | 2.76" | 2.32" | E-9Magnetic(with switch) |

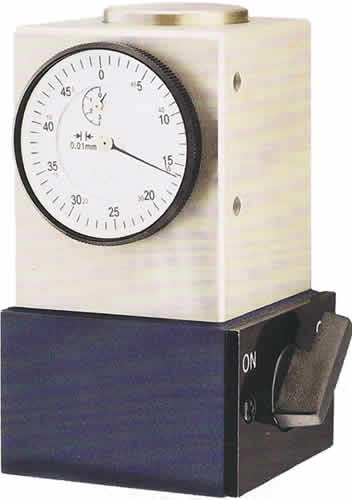

Preset gauge picture
