Dial Height Gauge
A dial height gauge is more suitable for situations that require high-precision readings and frequent repeated measurements, because the dial can quickly display the measurement results.
Dial height gauge with dual columns
Dial height gauge with dual columns
- Rack and pinion transmission, precise positioning.
- Handwheel rack and pinion transmission allows for fine adjustments.
- Apart from the dial, an additional digital counter is included, allowing for easy and accurate reading.
SPECIFICATIONS
| Range | Graduation | Accuracy | Range | Graduation | Accuracy |
|---|---|---|---|---|---|
| 0-300mm | 0.01mm | ±0.04mm | 0-12" | 0.001" | ±0.0015" |
| 0-450mm | 0.01mm | ±0.05mm | 0-18" | 0.001" | ±0.002" |
| 0-500mm | 0.01mm | ±0.05mm | 0-20" | 0.001" | ±0.002" |
| 0-600mm | 0.01mm | ±0.05mm | 0-24" | 0.001" | ±0.002" |

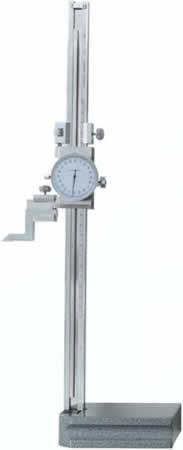

Dial height gauge with single column
Dial height gauge with single column
- Made of stainless steel.
- Rack and pinion transmission, precise positioning.
- With fine adjustment.
- A lightweight height gauge allows for convenient measurement of small workpieces.
SPECIFICATIONS
| Range | Graduation | Accuracy | Range | Graduation | Accuracy |
|---|---|---|---|---|---|
| 0-150mm | 0.02mm | ±0.03mm | 0-300mm | 0.02mm | ±0.03mm |
| 0-200mm | 0.02mm | ±0.03mm |
| Range | Graduation | Accuracy | Range | Graduation | Accuracy |
|---|---|---|---|---|---|
| 0-6" | 0.001" | ±0.001" | 0-12" | 0.001" | ±0.03mm |
| 0-8" | 0.001" | ±0.001" |
