Gear Micrometer

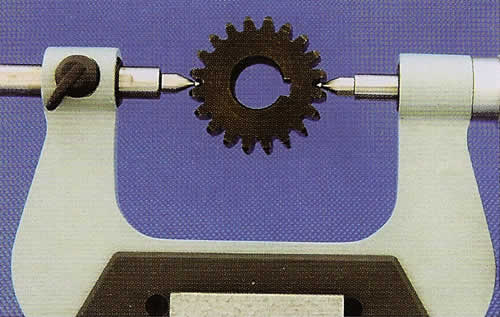

Gear micrometer Type-A Gear micrometer Electronic system
• Interchangeable boll tips for various gear modules(0.6-3.5) are available.

• Protection level IP54.Criterion: DIN40050/IEC529 standard.

• Painted frame(Type-A);  Chrome-plated frame(Type-B).
Gear micrometer Type-B Gear micrometer Electronic system

Gear micrometer Type-C Gear micrometer • Interchangeable boll tips for various
  gear modules(0.6-3.5) are available.
• Chrome-plated frame.

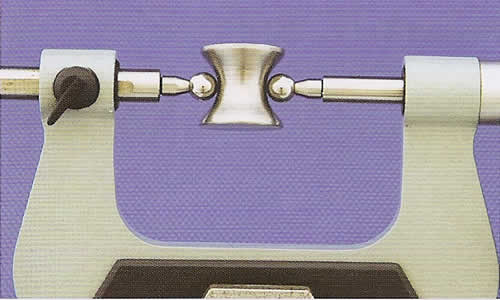

Interchangeable Tips Interchangeable tips

Interchangeable Tips (Optional) list
Ball diameterØ1mmØ1.5mmØ2mmØ2.5mmØ3mm Ø3.5mmØ4mmØ4.5mmØ5mmØ6mm
Module0.6-0.650.9-11.251.51.75 22.252.52.753.5
Diametral pitch4528-26221715 13111097
Gear Micrometer Type-A Type-B Type-C
RangeAccuracyRangeAccuracy
0-25mm / 0-1" 0.004mm 100-125mm / 4-5" 0.006mm
25-50mm / 1-2" 0.004mm 125-150mm / 5-6" 0.006mm
50-75mm / 2-3" 0.005mm 150-175mm / 6-7" 0.007mm
75-100mm / 3-4" 0.005mm
1" gear micrometers, 2" gear micrometers, 3" gear micrometer, 4" gear micrometers,
5" gear micrometers, 6" gear micrometers, 7" gear micrometers, 8" gear micrometer.
   Reference hyperlink:      Gear root diameter micrometer,   Disc micrometer,   Gear tooth micrometer,

   Gear tooth caliper.
