Double Display Micrometer
Double Display Digital Micrometer(Two Key)
Type-A
Double display digital micrometer
Chrome-plated frame
Chrome-plated frame
• Double display in front and back. LCD direction can be changed by key for
easy reading in all kinds of measuring condition and left or right
• Protection level: IP54.
• Display data is origin data of absolute measurement after turning on/off.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Carbide measuring faces.
• Travel of micrometer head: 30mm.
• Resolution of digit: 0.001mm / 0.00005".
easy reading in all kinds of measuring condition and left or right
• Protection level: IP54.
• Display data is origin data of absolute measurement after turning on/off.
• Criterion: DIN863/1, DIN40050/IEC529 standard.
• Carbide measuring faces.
• Travel of micrometer head: 30mm.
• Resolution of digit: 0.001mm / 0.00005".
Type-B
Double display digital micrometerFine cast frame
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| 0-30mm / 0-1.2" | 0.004mm | 100-130mm / 4-5.2" | 0.006mm |
| 25-55mm / 1-2.2" | 0.004mm | 125-155mm / 5-6.2" | 0.006mm |
| 50-80mm / 2-3.2“ | 0.005mm | 150-180mm / 6-7.2" | 0.007mm |
| 75-105mm / 3-4.2" | 0.005mm | 175-205mm / 7-8.2" | 0.007mm |
Double Display Digital Micrometer(Travel of Head:50mm)
Type-C
Double display digital micrometer
• Protection level: IP54.
• Carbide measuring faces;fine cast frame(Type-F).
• Resolution of digit: 0.001mm/0.00005".
• Double display LCD direction can be changed by key for
easy reading in all kinds of measuring condition and left or right
• Type-C travel of micrometer head: 50mm. Non-Rotating spindle.
Type-D travel of micrometer head: 30mm.
• Criterion: DIN863/1, DIN40050/IEC529 standard(Type-C).
• Carbide measuring faces;fine cast frame(Type-F).
• Resolution of digit: 0.001mm/0.00005".
• Double display LCD direction can be changed by key for
easy reading in all kinds of measuring condition and left or right
• Type-C travel of micrometer head: 50mm. Non-Rotating spindle.
Type-D travel of micrometer head: 30mm.
• Criterion: DIN863/1, DIN40050/IEC529 standard(Type-C).
Type-D
Double display digital micrometer
Double display digital micrometer
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| 0-50mm / 0-2" | 0.005mm | 100-150mm / 4-6" | 0.007mm |
| 50-100mm / 2-4" | 0.006mm | 150-200mm / 6-8" | 0.008mm |
| Range | Accuracy | Range | Accuracy |
|---|---|---|---|
| 0-30mm / 0-1.2" | 0.004mm | 145-175mm / 5.8-7" | 0.007mm |
| 20-50mm / 0.8-2" | 0.004mm | 170-200mm / 6.8-8" | 0.007mm |
| 45-75mm / 8-3" | 0.005mm | 195-225mm / 7.8-9" | 0.008mm |
| 70-100mm / 2.8-4" | 0.005mm | 220-250mm / 8.8-10" | 0.008mm |
| 95-125mm / 3.8-5" | 0.006mm | 245-275mm / 9.8-11" | 0.009mm |
| 120-150mm / 4.8-6" | 0.006mm | 270-300mm / 10.8-12" | 0.009mm |

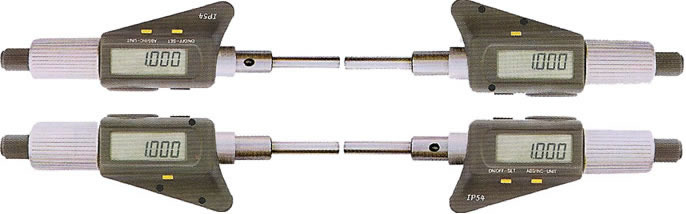

Double Display Digital Micrometer Head
• Protection level: IP54.
• Resolution: 0.001mm / 0.00005".;
• Double display , LCD direction can be changed by key.
• Direction of display changing key. Pressing this key will turn on back
LCD,reverse display and normal display (turn off back LCD).
• Resolution: 0.001mm / 0.00005".;
• Double display , LCD direction can be changed by key.
• Direction of display changing key. Pressing this key will turn on back
LCD,reverse display and normal display (turn off back LCD).
| Range | Accuracy | Type | Range | Accuracy | Type | ||
|---|---|---|---|---|---|---|---|
| 0-30mm / 0-1.2" | 0.003mm | 0-50mm / 0-2" | 0.005mm | ||||
1.2" double display digital micrometer head, 2" double display digital micrometer head.
