External Dial Caliper
Outside dial caliper are suited for measuring grooves and other hard-to-reach outside dimension.The data of Max. and Min can be remembered , or the displaying data can be held,the tolerance can be set.
External dial caliper Type-B

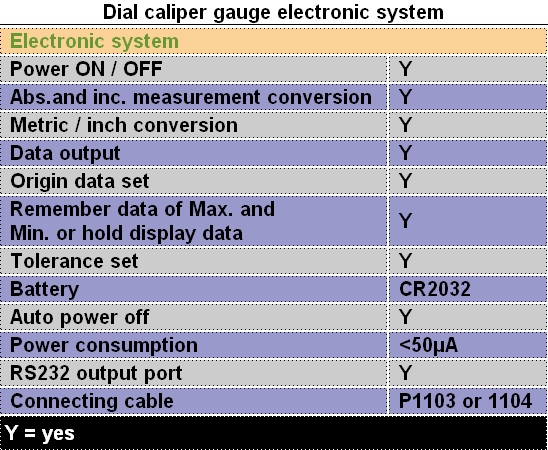

Electronic system
• External dial calipers are suited for measuring grooves and
other hard-to-reach outside dimension.
• Dial rotates ±170° for use at versions angles.
• Display data is origin data of absolute measurement after
changing battery.
• Digital display and analog display on LCD automatic switch over.
• Analog display range: ±20 graduation.
• Digital resolution:
0.005mm(Metric); 0.0002"(Inch).
Analog resolution:
0.01mm; 0.02mm; 0.05mm(Metric); 0.0005"; 0.001"; 0.002"(Inch).
other hard-to-reach outside dimension.
• Dial rotates ±170° for use at versions angles.
• Display data is origin data of absolute measurement after
changing battery.
• Digital display and analog display on LCD automatic switch over.
• Analog display range: ±20 graduation.
• Digital resolution:
0.005mm(Metric); 0.0002"(Inch).
Analog resolution:
0.01mm; 0.02mm; 0.05mm(Metric); 0.0005"; 0.001"; 0.002"(Inch).

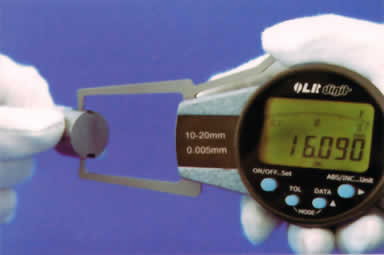

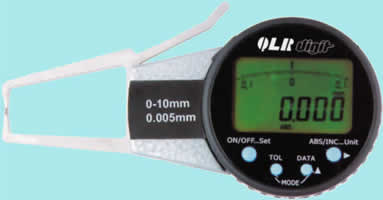

External dial calipers picture
Outside dial caliper sketch
Measuring contact forms
Outside dial caliper sketch
Measuring contact forms
| Range | Accuracy | L | S | H | R(Jaw-A) | D(Jaw-B) |
|---|---|---|---|---|---|---|
| Travel 10mm | ||||||
| 0-10mm / 0-0.8" | 0.02mm | 40mm | 3mm | 8mm | 0.5mm | Ø1.5mm |
| 10-20mm / 0.4-0.8" | 0.02mm | 40mm | 3mm | 8mm | 0.5mm | Ø1.5mm |
| 20-30mm / 0.8-1.2" | 0.02mm | 40mm | 3mm | 8mm | 0.5mm | Ø1.5mm |
| 30-40mm / 1.2-1.6" | 0.02mm | 40mm | 3mm | 8mm | 0.5mm | Ø1.5mm |
| 40-50mm / 1.6-2" | 0.02mm | 40mm | 3mm | 8mm | 0.5mm | Ø1.5mm |
| Travel 20mm | ||||||
| 0-20mm / 0-0.8" | 0.03mm | 80mm | 6.5mm | 25mm | 0.75mm | Ø1.5mm |
| 10-30mm / 0.4-1.2" | 0.03mm | 80mm | 6.5mm | 25mm | 0.75mm | Ø1.5mm |
| 20-40mm / 0.8-1.6" | 0.03mm | 80mm | 6.5mm | 25mm | 0.75mm | Ø1.5mm |
| 30-50mm /1.2-2" | 0.03mm | 80mm | 6.5mm | 25mm | 0.75mm | Ø1.5mm |
| 40-60mm / 1.6-2.4" | 0.03mm | 80mm | 6.5mm | 25mm | 0.75mm | Ø1.5mm |
| Note: Jaw-A and Jaw-B is optional. | ||||||
| Internal dial caliper | Electronic system; Hold data; Internal range: ~2.4" |
| Dial caliper gage | Internal measuring range: ~215mm; External measuring range: ~200mm. |
| Dial caliper gages | External measuring range: 0-80, 0-90mm. |
| Dial caliper gauge | Inch system. Internal measuring range: ~3.8"; External measuring range: ~4.0". |
| Dial caliper gauges | Measuring depth: ~250mm; Internal measuring range: ~75mm. |
