Multi-purpose Caliper

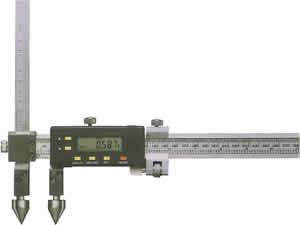

Multi-purpose Digital Caliper

Multi-purpose digital caliper Type-A • LCD display for easy reading.

• Zero setting at any position.

• Metric/Inch system conversion at any position.

• With data output interface.

• With data presetting function.

• Absolute measurement and comparison

measurement conversion at any position.

Type-A Multi-purpose digital caliper
Range	Resolution	H	H1	D	L	Accuracy
20-150mm	0.01mm / 0.0005"	180mm	50mm	16mm	20mm	±0.06mm
20-200mm	0.01mm / 0.0005"	180mm	50mm	16mm	20mm	±0.06mm
20-300mm	0.01mm / 0.0005"	180mm	50mm	17mm	20mm	±0.09mm
20-500mm	0.01mm / 0.0005"	216.5mm	61.5mm	25mm	20mm	±0.09mm
20-1000mm	0.01mm / 0.0005"	400mm	70mm	32mm	20mm	±0.20mm
30-2000mm	0.01mm / 0.0005"	625mm	108mm	48mm	30mm	±0.20mm

Multi-purpose Vernier Caliper

Multi-purpose vernier caliper Type-B • Center distance between two holes can be easily obtained by moving slider.

• Center distance between two step holes can be obtained too.

• Can be used to measure the diameter of big hole.

• With external measurement.

• With step measurement.

• With carbide tipped awl anvils for scribing.

Type-B Multi-purpose vernier caliper
Range	Graduation	H	H1	D	L	Accuracy
20-150mm	0.02mm	180mm	50mm	16mm	20mm	±0.06mm
20-200mm	0.02mm	180mm	50mm	16mm	20mm	±0.06mm
20-300mm	0.02mm	180mm	50mm	17mm	20mm	±0.09mm
20-500mm	0.02mm	216.5mm	61.5mm	25mm	20mm	±0.09mm
20-1000mm	0.02mm	400mm	70mm	32mm	20mm	±0.20mm
30-2000mm	0.02mm	625mm	108mm	48mm	30mm	±0.20mm
